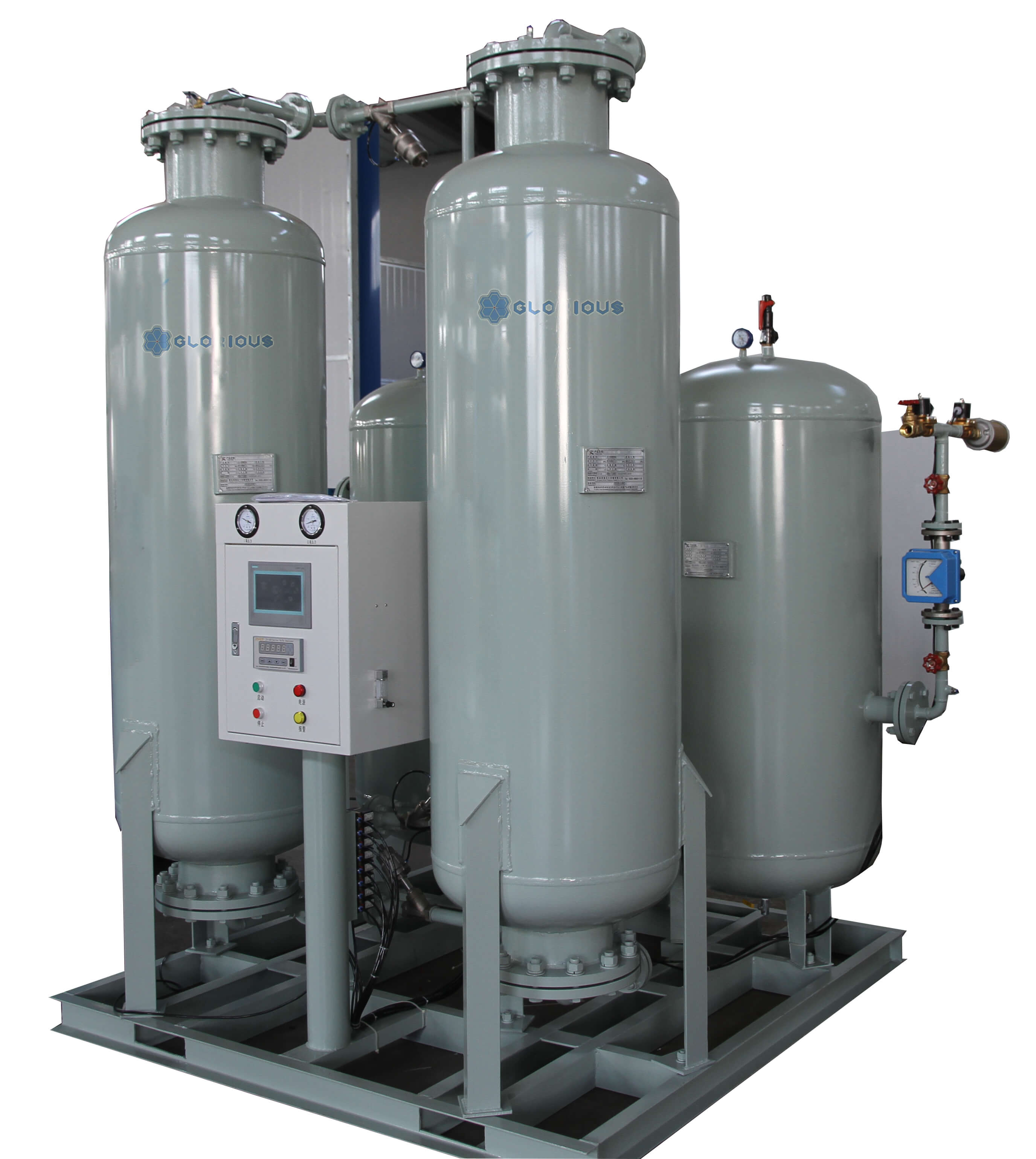

WPZN-20-49 Series Nitrogen Generator

★ The selection of nitrogen generator parts is the guarantee of equipment quality:
①High-performance molecular sieve for nitrogen production;
② German Siemens PLC program controller;
③Pneumatic valve imported from Germany;
★ Process design is the basis of product quality:
①C-class filter accuracy 3μ;
②T-class filter accuracy 1μ;
③The precision of A-grade filter is 0.01μ;
④AA high-efficiency degreaser precision 0.01μ residual oil 0.01ppm;
★ Pressing the molecular sieve is a means to ensure that the molecular sieve is not pulverized;
★ Strictly in accordance with GB/T 19001-2016/ISO9001:2015 quality assurance system, the nitrogen generator has a service life of 10 years, the molecular sieve service life is more than 8 years, and the whole machine can run continuously for 24 hours/day and 30 days/month ;
★ Lifetime maintenance, in order to ensure your production, provide 24-hour maintenance service;
★ Military enterprise brand quality, integrity assurance (military product quality is strictly checked);
★ Market performance all over the country, excellent peer performance and customer reputation;
★ Cooperative research and development with high-precision and advanced enterprises all the year round, mature technology, stable and reliable equipment performance;
★ Strict procurement and supply system for military enterprises to ensure the performance and quality of purchased equipment;
★ Perfect after-sales service system, distance advantage, timely and efficient after-sales service.
Availability:
Quantity:
Inquire Add to Basket

  • WPZN-20-49 Series Nitrogen Generator

  • Glorious

Technical indicators
NO. Name  Indicator  Remarks
1 Product nitrogen   output  ≥20m³/h  gas volume reading display
2 Product nitrogen   purity  ≥99.99%  non-oxygen   content，nitrogen purity online display
3 Nitrogen outlet   pressure  ≤0.6Mpa  pressure reading display
4 Nitrogen oil   content  ≤0.01ppm
5 Operation mode Fully  automatic operation
6 Nitrogen generator   power supply  220V/50HZ or   220V/60HZ
7 Installed power of   nitrogen generator  0.3KW
1.Technical   parameters of screw air compressor
No.  Performance   Index  Technical Parameters  Unit
1  Model BK15-8
2 Process   air volume 2.4 Nm³/min
3 Exhaust   pressure  0.7-0.8Mpa Mpa
4 Cooling   method Air   cooling
5 Working   voltage 380/50 V/Hz
6 Device   size 1000*670*1090 mm
7  Equipment weight 300 KG
8 Power 15 KW
2.Technical   parameters of high temperature refrigerated dryer
No.  Performance   Index  Technical Parameters  Unit
1  Model HX-02GF
2 Process   air volume 2.5 Nm³/min
3 Exhaust   pressure  0.6Mpa——1.0Mpa Mpa
4 Cooling   method Air   cooling
5 Working   voltage 220/50 V/Hz
6 Device   size 850*400*760 mm
7  Equipment weight 102 KG
8 Power 0.67 KW
3.Four-stage precision filter (C-T-A-AA)
No.  Item  Detailed   parameters
1 filter   name Class   C centrifugal oil-water separator Class   T main line filter Class   A micro oil mist filter AA   grade super high efficiency filter
2 Filtration   accuracy 3um 1um 0.01u 0.01u
3 water   removal rate 100% 100% Residual   oil rate: 0.01ppm Residual   oil rate: 0.001ppm
4 Oil   mist removal rate 70% 100.00%

5 Filter   material Micro   glass fiber Micro   glass fiber Microfiber   glass with activated carbon powder Microfiber   glass with activated carbon powder
6 Filter   life 8000   hours 8000   hours 8000   hours 8000   hours
7 work   pressure Standard   0.7Mpa, maximum 1.0Mpa
8 Intake   air temperature ＜66℃
9 initial   pressure drop ＞0.015Mpa
10 select   attachment automatic   drain
4.Oil-free   nitrogen booster
No.  Performance   Index  Technical   Parameters  Unit
1 Model VWZ-20/5-20 ——
2 Handling   gas volume 20 Nm³/min
3 Intake   pressure 0.5 Mpa
4 Cooling   method Air   cooling
5 Operating   Voltage 380/50 V/Hz
6 Equipment   size 1100×850×850 mm
7 Equipment   weight 300 KG
8 Power 4 KW
9 Outlet   pressure 2 Mpa

WPZN20-49系列制氮机WPZN15-49系列制氮机WPZN5-49系列制氮机WPZN80-49系列制氮机7910WPZN100-49系列制氮机
